MCPPT-1-XC
The most Naira-friendly and effective PTT solution designed for security, industrial, and mission-critical operations.
Key Features
Powerful capabilities designed for mission-critical communication
Secure & Encrypted
Military-grade encryption for all communications
Instant Connectivity
One-click calling and conference capabilities
Connectivity Included
Pre-installed eSIM (No local SIM required)
Emergency SOS
Panic button for critical situations
Multi-User Support
One-to-one and one-to-group calls
GPS Tracking
Embedded GPS for tracking and geofencing
Complete Ecosystem
Integrated hardware, software, and management solutions
MCPPT-1-XC Device
Rugged PTT device with IP68 waterproof rating
Mobile Dispatcher
Android app for on-the-go communication
Web Admin
Centralized device and user management
Dispatcher
Multi-display dispatch console

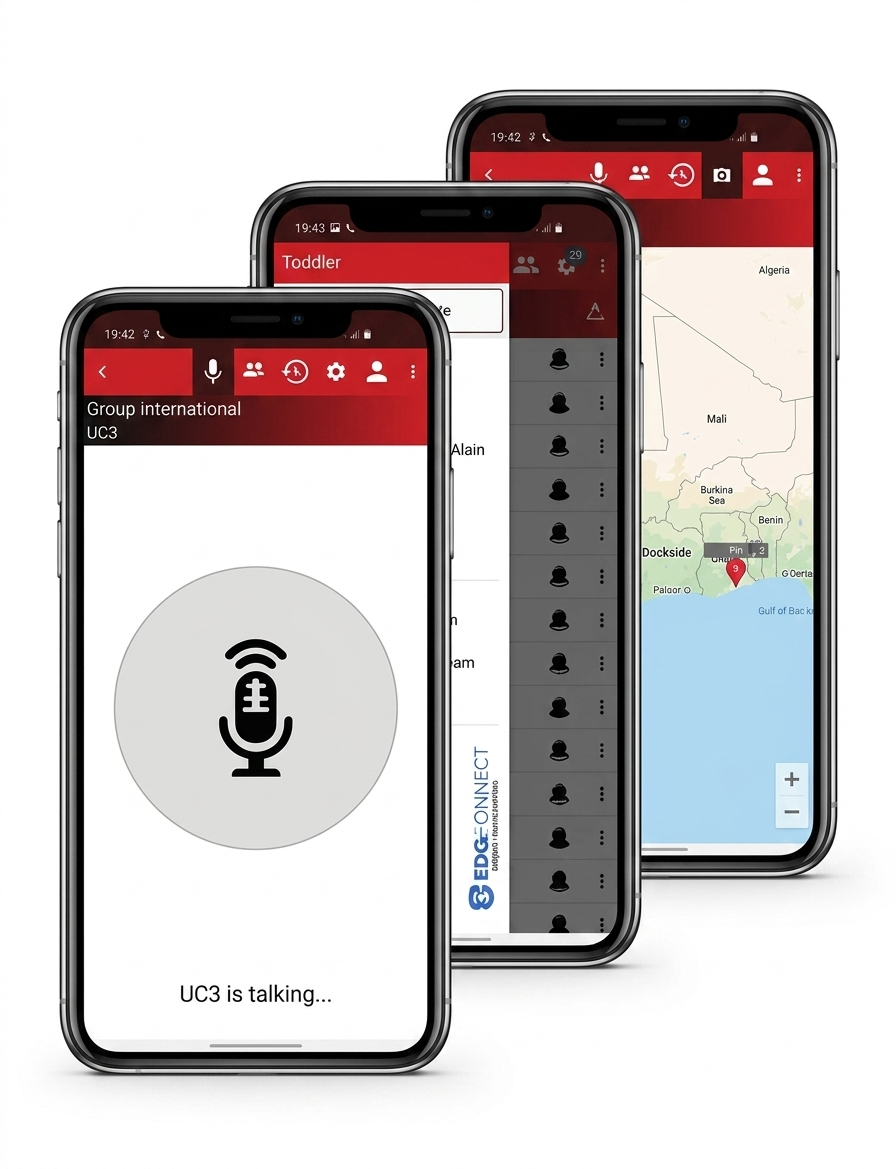

Mobile App Dispatcher
Full-featured Android dispatcher compatible with any 2.3+ device. Works seamlessly over 2G, 3G, 4G/LTE, WiFi, and wired connections.
Key Features
- Group and private audio
- Group and private text
- Member status visibility
- Location tracking
- Call history playback
- Multiple groups support
- Works on all IP networks

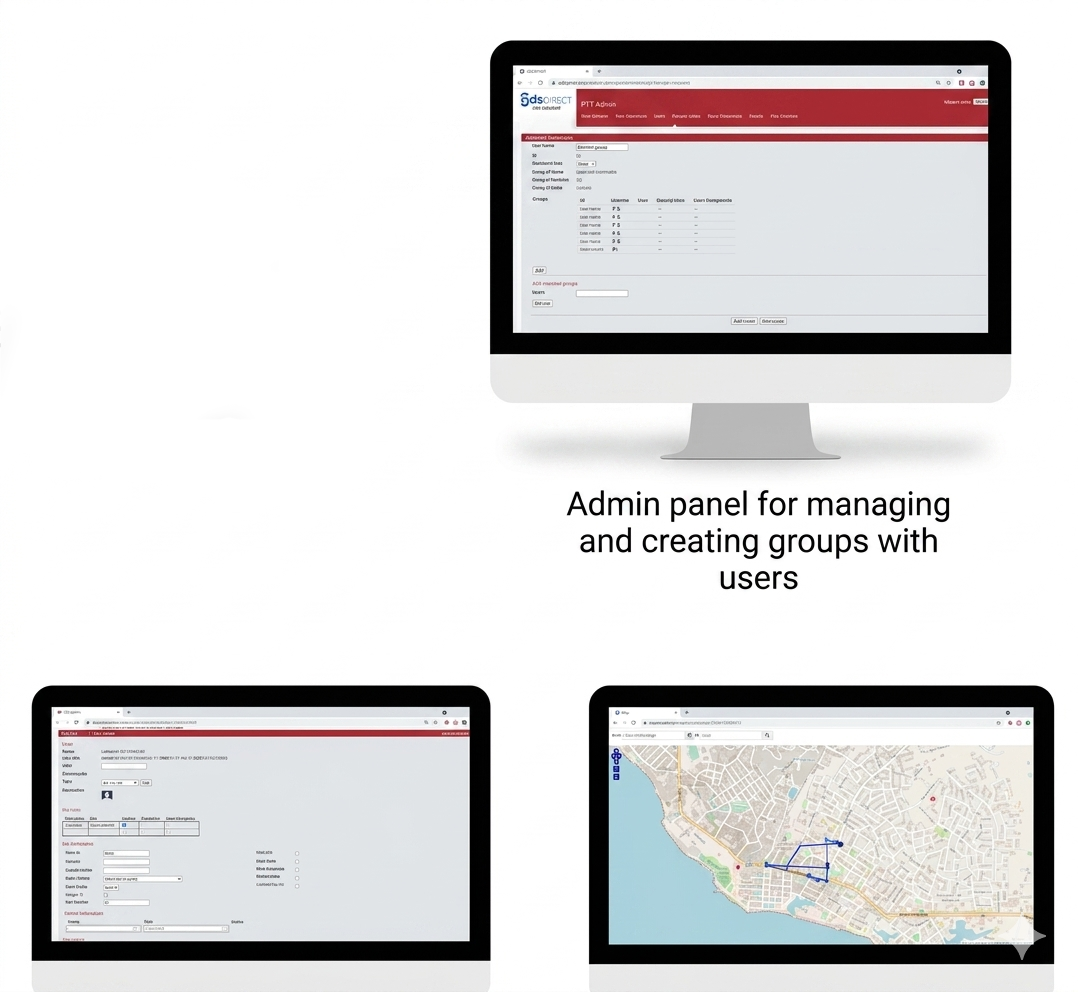

Web Admin Portal
Centralized administration platform for provisioning and managing all your devices. Supports both manual and automated (SOAP protocol) activation with user-friendly interface.
Key Features
- Add and remove users
- Create and manage groups
- Mass provisioning
- Mass removal
- Check group status
- View user profiles
- Track devices

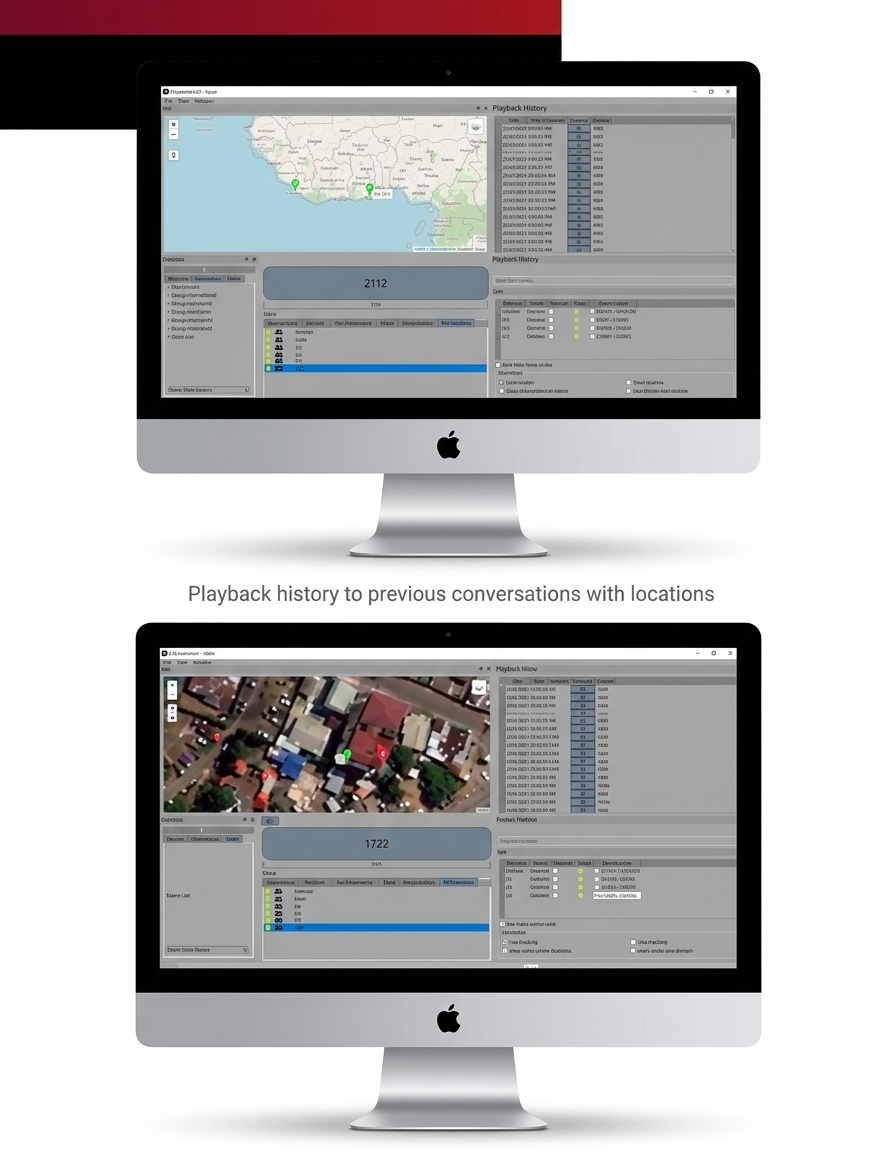

Dispatch Console
Large multi-display dispatcher for terminals and wide spaces. Integrated audio input/output with live tracking, satellite view maps, and comprehensive playback history
Key Features
- Group and private text
- Geofencing capabilities
- Member status monitoring
- Location services
- Call history playback
- Multiple groups support
- Works on all IP networks
- Compatible with Android and Windows

Technical Specifications
Complete hardware and connectivity details
| Dimension | 160 x 58 x 23 mm |
| Waterproof Rating | IP68 |
| Operating System | Android 8.0 (Go) |
| Network | GSM: B8, WCDMA: B8, LTE: FDD B1/3/5/8, TDD B38/40/41 |
| Built-in Memory | 1GB RAM + 8GB ROM |
| Display Size | 3.5" x 4.2 mm |
| WiFi | 2.4GHz IEEE 802.11a/b/g/n |
| Bluetooth | BLE 4.0, 3.0 + HS, 2.1 + EDR |
| GPS/Location | GPS / AGPS with GNSS antenna support |
| Charging | Type-C USB 2.0 |
| Earphone Interface | 3.5mm standard |
| Speaker | 36 mm, 1.5W |
| Microphone | Single Mic |
| Battery Capacity | 3500 mAh, replaceable |
| Battery Charging | 5V-1A charger |
Accessories
Expand your device capabilities with optional accessories
Standard Accessories
- Battery (3500 mAh)
- Charger with Type-C cable
- Belt clip
Optional Accessories
- Earphone (3.5mm)
- Dock station
- Desktop charger
Ready to Deploy?
Contact our team to discuss your PTT communication needs and get a customized solution for your organization.
